DIY. Tiny P51D Mustang wing span 390 mm.

  Parts+Electronic devices

       1- Micro Reciever  2.4G Flysky

       2- Micro servo1.7g

     1- 8520 Coreless motor + Propeller 65mm.

     1-Lipo 150mAh30C

       1-433MHz Reciever module

         1-433 MHz Remote key

 Assembly drawing

Partial drawing

   DIY. Tiny A6M Zero wing span 380 mm.

  Parts+Electronic devices

       1- Micro Reciever  2.4G Flysky

       2- Micro servo1.7g

     1- 8520 Coreless motor + Propeller 65mm.

     1-Lipo 150mAh30C

       1-433MHz Reciever module

         1-433 MHz Remote key

 Assembly drawing

Partial drawing

DIY. Sticky Trainer 24"

 DIY. Sticky Trainer 24"

Side View Assembly drawing  A3

Top View Assembly drawing A3

Side View Assembly Partial drawing A4

Top View Assembly Partial drawing A4

Wing Main Assembly drawing A3

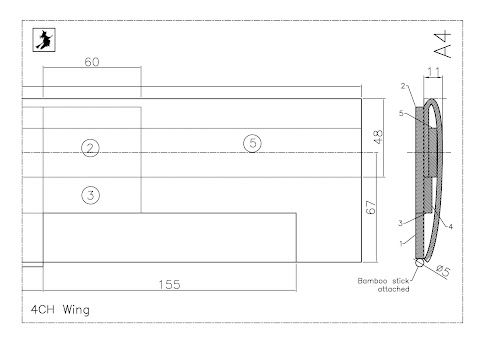

Wing Partial drawing A4

Wing Detail Assembly drawing A3

Wing Detail Partial drawing A4

Wing Accessories Detail drawing A4
